EventView

EventView (Event Viewer)

The EventView is an advanced table that maintains and lists a chronological record of all actions, user interventions, and system changes occurring in your SCADA system.
While the AlarmView object displays “faults,” the EventView displays “actions.” It answers the question: “Who changed which value, on which screen, and when?”

Basic Operating Principle and Database

Adding the EventView object to the screen is not sufficient for it to display data; the system must be configured to record logs in the background. The following two conditions must be met:

  1. Enabling Recording (Setup):
    • Go to the Setup page in the Project Tree.
    • Check the Event Recording box.
    • Note: If this feature is disabled, no data will be recorded even if a database is connected, and the table will appear empty.
  2. Database Connection:
    • A valid database (SQL Server, MySQL, etc.) must be defined in the Databases section of your project.
    • When the EventView object is selected, this database must be chosen from the Advanced panel.

        Properties Panel – Key Properties

        This panel controls only the general state of the object. Content management is not performed here.

        • Visible: You can control the visibility of the table by binding it to a condition.
        • Enable: Used to set the table to a passive (non-clickable) state.

        Advanced Panel – Key Properties

        Settings (General Settings)
        Basic settings determining how the table retrieves data:

        • Database (CRITICAL)
          • The database connection from which event logs will be read.
        • MaxRows
          • The maximum number of rows to fetch from the database at one time to protect performance (Default: 100). Setting this too high may increase query time as the number of events grows.
        • ResetTime
          • The duration (in seconds) the screen waits after operator interaction (filtering or browsing history) before automatically reverting to “Real-Time” (Live Stream) mode if no further action is taken.

        Child Controls & Filter Panel Controls (Visual Customization)

        The EventView is a composite structure containing search boxes, date pickers, and export buttons. Through these lists, you can access and customize every individual part inside the object.

        • How to Use: Example: Preventing the operator from exporting to Excel.
        1. Find the _ExcelButton row in the Child Controls list.
        2. Click the “Properties” text next to it.
        3. In the window that opens, set the Visible property to False.
        • Capabilities:
          • Translate table column headers (_ResultGridColumns) (e.g., change “User” to “Operator”).
          • Change button text or icons.
          • Hide elements in the search panel (FilterPanel).

        Runtime Usage and Columns

        On the Runtime screen, the table presents the following information:

        Standard Columns

        • ID
          • The sequence number of the event in the database.
        • Time Stamp
          • The date and time the event occurred.
        • User
          • The user who performed the event (e.g., “Admin,” “Operator1,” or “System”). This feature is critical in secure facilities to prove “who did what.”
        • Parent
          • The name of the main screen or module where the event occurred.
        • Child
          • The name of the specific object where the event occurred (e.g., “Start_Button”).
        • Description
          • A description of the event (e.g., “Button Click,” “Value Change”).
        • Value
          • If a change was made, the new value (e.g., if a Set value changed from 50 to 100, it appears here).

        Toolbar Functions

        • Real-Time
          • Clears filters and refreshes the list to show the most recent events at the top (Live Stream).
        • Pagination
          • Allows navigation through pages of historical events.

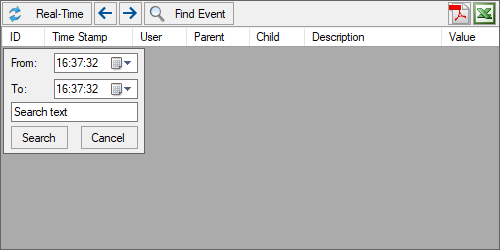

        • Find Event (Filtering)
          • Opens the detailed search panel.
          • From / To: Used to query what happened within a specific date/time range.
          • Search Text: Used to search for a specific user (e.g., “John”) or specific action.
        • PDF / Excel
          • Exports the currently displayed event list as a report.
