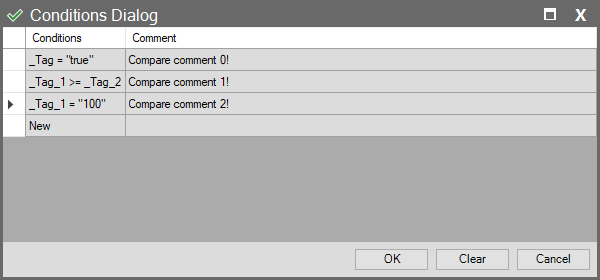

Conditions Dialog

Use this dialog to define the list of conditions required for a function or action to run. When any of the conditions defined here are true, the relevant action is triggered.

• Conditions Column

You define a condition in each row. Open the Compare Dialog window by clicking the + New option to create a new condition or by double-clicking an existing row.

• Comment Column

You can add a short note explaining the purpose of each condition.

Compare Dialog

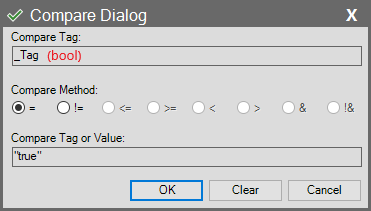

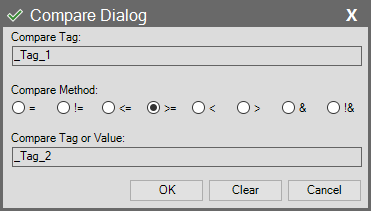

This dialog allows you to define a condition that compares a tag’s value with another tag or a constant value.

• Compare Tag

Select the tag that forms the left side of the comparison.

• Compare Method

Select the operator to use for comparing the two values:

• = : Equal to
• != : Not equal to
• <= : Less than or equal to
• >= : Greater than or equal to
• < : Less than
• > : Greater than
• & : Bitwise AND
• !& : Bitwise NAND

• Compare Tag or Value

Enter the tag or constant value that forms the right side of the comparison. When entering a constant value, you must enclose it in double quotes and ensure it matches the type and value range of the first selected tag (e.g., “true”, “100”, “-200”).

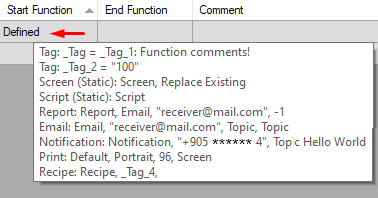

Note: In the Conditions Dialog window, defined conditions are indicated by the label Defined. Hover your mouse over the Defined text to view the content of this structure. This opens a list quickly showing all defined conditions and their comments in that row.
